显示屏尺寸 Display Size

2.0

inch

准亿产品型号ZHUNYI Model

Z20001-FLP-789V-Y1

-

显示屏分辨率 Display Resolution

240*RGB*320

pixels

LCD可视区尺寸 LCD Active Area

30.6*40.8

mm

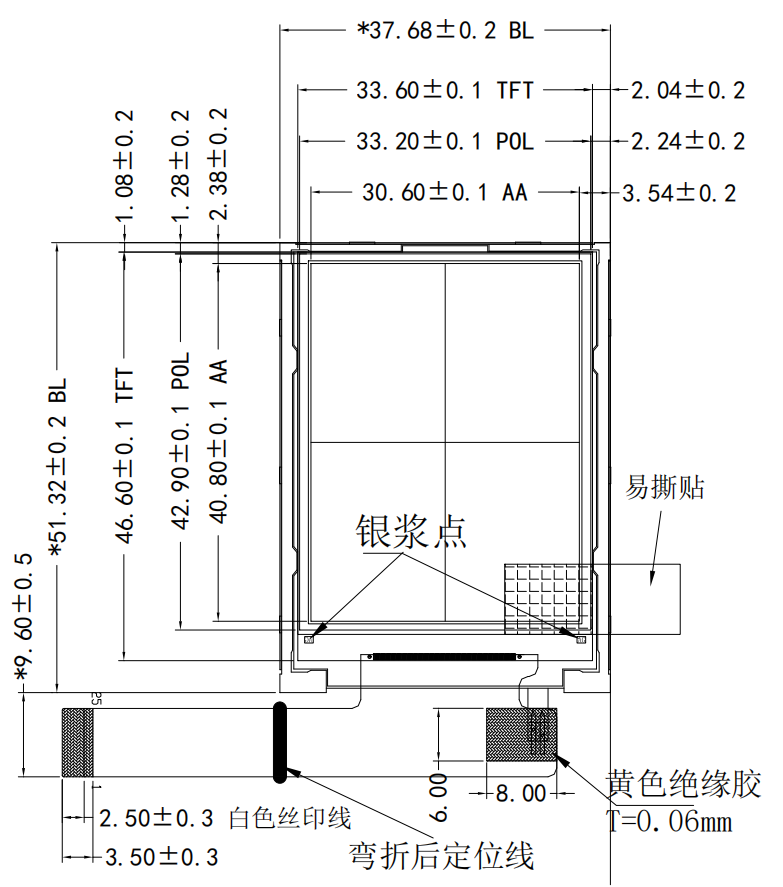

LCM外形尺寸 LCM  Dimension

37.68*51.32*2.3

mm

LCM PIN定义  Interface

SPI/MCU

-

LCM视角度View Direction (Gray Inversion)

全视角

-

运行温度Operating Temperature

-20°C~ 70°C

-

储存温度Storage Temperature

-30°C~ 80°C

-
