显示屏尺寸 Display Size

1.54

inch

准亿产品型号ZHUNYI Model

Z15002-KFJ-789V-Y1

-

显示屏分辨率 Display Resolution

240*RGB*240

pixels

LCD可视区尺寸 LCD Active Area

27.72*27.72

mm

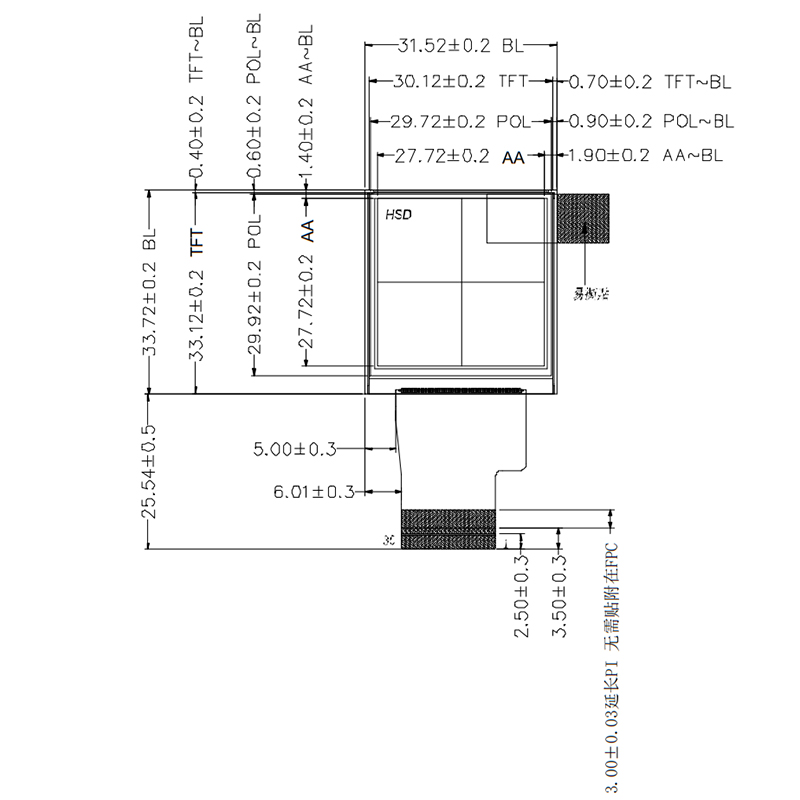

LCM外形尺寸 LCM  Dimension

31.52*33.72*1.94

mm

LCM PIN定义  Interface

MCU

-

LCM视角度View Direction (Gray Inversion)

全视角

-

运行温度Operating Temperature

-20°C~ 70°C

-

储存温度Storage Temperature

-30°C~ 80°C

-
